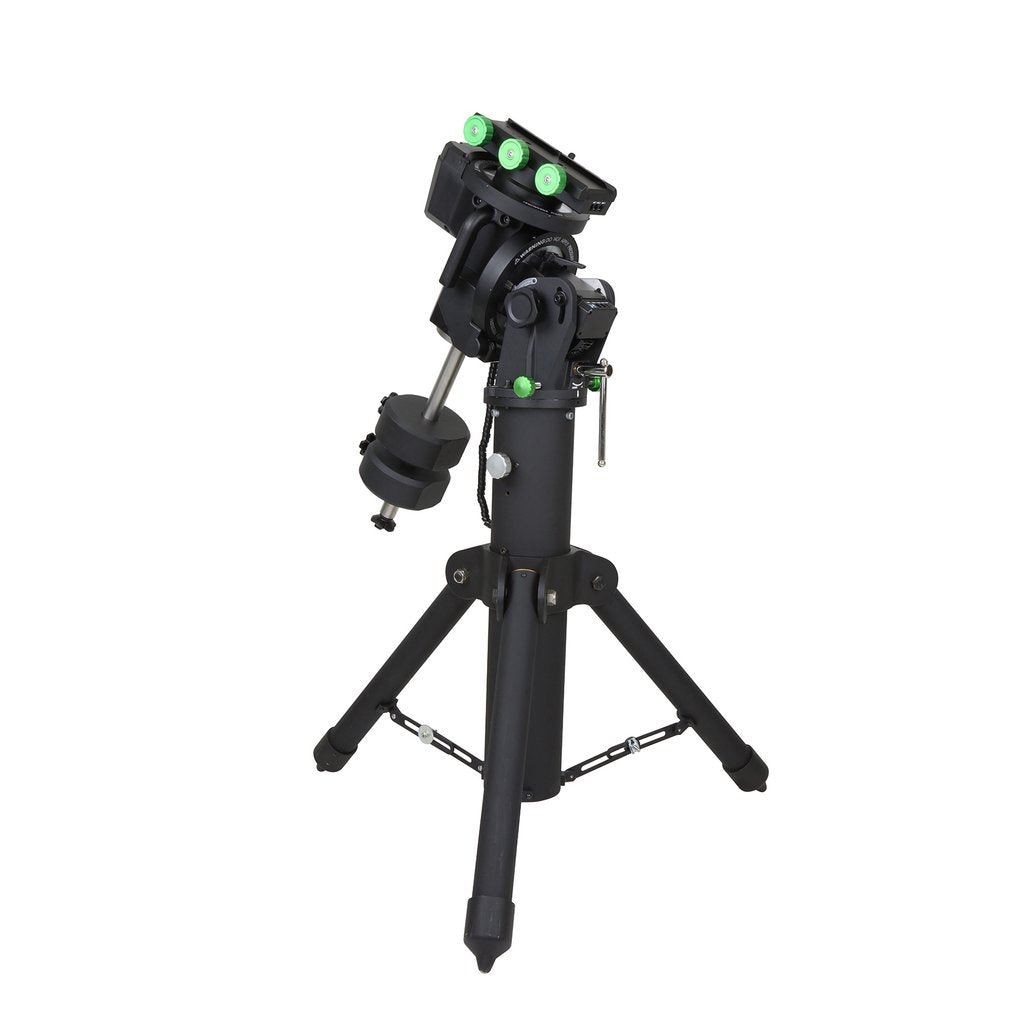

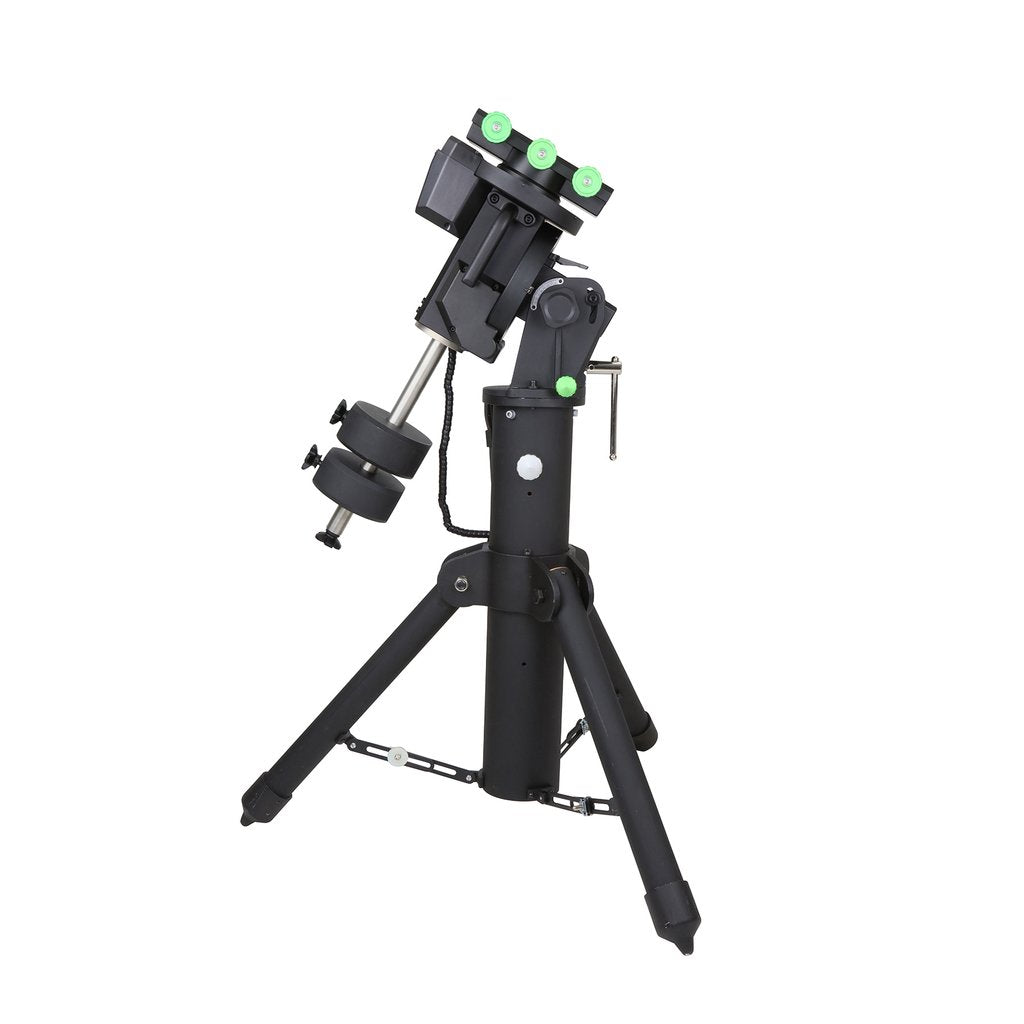

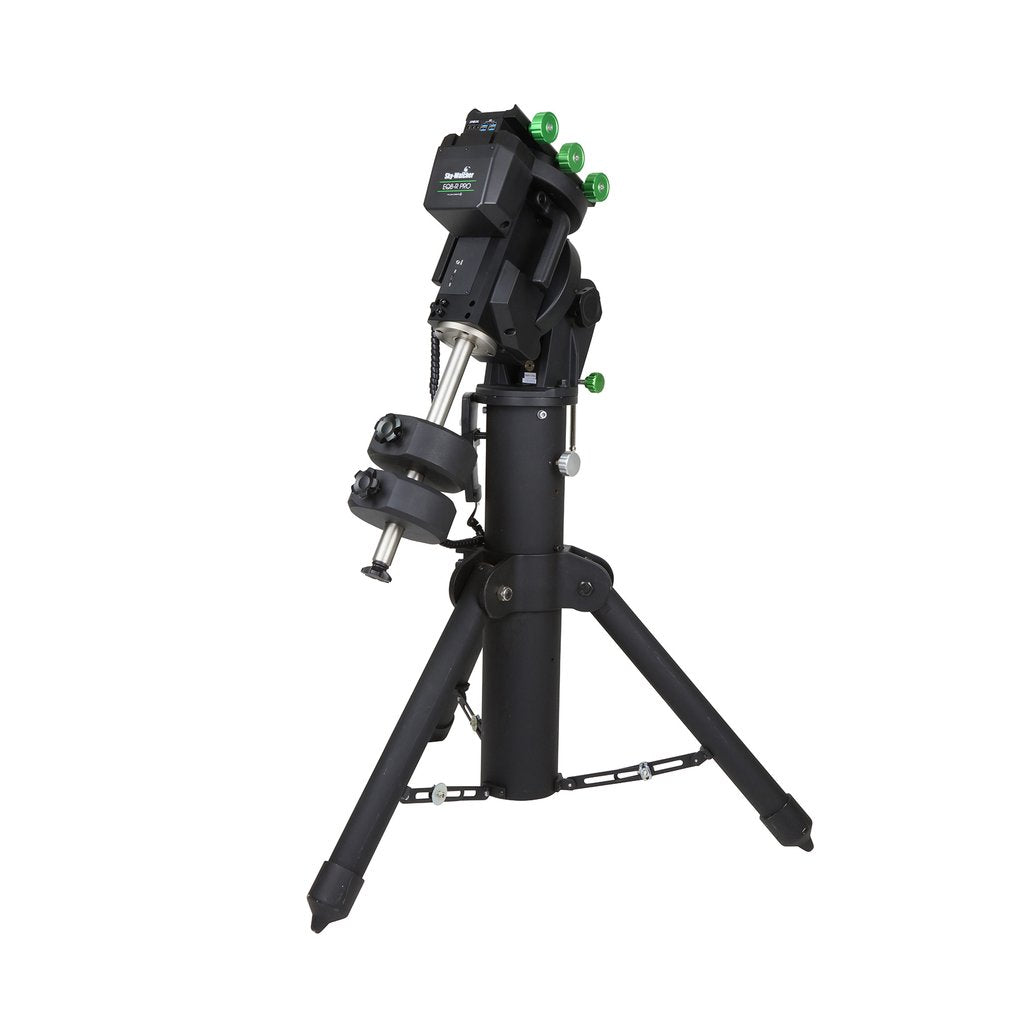

EQ8 R Mount with Pier Tripod - Heavy Duty Telescope Mount for Astrophotography & Stargazing - Perfect for Backyard Astronomy & Night Sky Observation
Free shipping on all orders over $50
7-15 days international
20 people viewing this product right now!
30-day free returns
Secure checkout
66630060
Description
If you select SkyWatcher Free Shipping when checking out, this product will ship directly from the manufacturer and will not come from our stock.
This item is currently backordered from the manufacturer. Please call or email to inquire about delivery lead times.
Overview
All-metal precision internal construction makes this mount strong and stable. The EQ8-R is a perfect fit for even the largest OTAs Sky-Watcher has to offer.
Belt-drive On Both AxesBelt drives provide minimal backlash and significantly reduced periodic error, which mean smoother, more accurate tracking.
Integrated Cable Management SystemBuilt-in USB 3.0, power, and serial ports eliminate cable drag and reduces the worry of cable snags
Description
Building on the legacy of Sky-Watcher’s popular EQ8 mount, the EQ8-R introduces a variety of upgrades and enhancements that make observatory-class astrophotography easier than ever.
Whisper-quiet dual belt drives greatly reduce Periodic Error while providing enhanced tracking and guiding. The fully realized cable management system eliminates cable drag and makes remote set-ups ridiculously convenient.
The EQ8-R has an available optional polar scope available, making polar alignment quick and easy
Cable management features four USB 3.0 ports, three 2.1mm power ports and three serial ports
Rock-solid, all-metal construction delivers a staggering 110 pounds of payload capacity
Specifications

| Mount Type | High-capacity motorized equatorial (EQ) |
| Tripod | Heavy-duty pier tripod |
| GoTo | Yes |
| Payload Capacity (lbs) | 110 |
| Mount Head Height (head by itself) | 19.5" |
| Mount Head Weight (lbs) | 56.8" |
| Mount with Tripod max height | 58.625" |
| Mount with Tripod min height | 49.75" |
| Tripod max height (no mount head) | 39.125" |
| Tripod min height (no mount head) | 30.25" |
| Tripod leveling pads min height | 4" |
| Tripod Weight (lbs) | 64.8 |
| Tripod Leg Diameter | 2.36" |
| Mounting Saddle Type | D-style |
| Power Type | DC11~16V, 3 amp |
| Cable management | Four USB 3.0 ports, Three 2.1mm power ports, Three serial connections |
| Polar Scope | Sold seperately |
| Latitude Range (degrees) | 10° to 65° |
| Computer/Drive System Info | |
|---|---|
| Object Database | Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects |
| Controller | SynScan hand controller, flash upgradeable, or PC direct, OR SynScan Pro app and Wi-Fi adapter |
| Alignment Procedures | One-, two- and three-star alignment |
| Slew Speeds | 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x |
| WiFi | Optional WiFi dongle |
| GPS | Optional SynScan GPS sold seperately |
| Included Weights | 22lbs (two) |
| Motor Type | 0.9° hybrid stepper motor |
| Drive System | Belt |
