Description

#19539 - Optional External Temperature Probe Kit

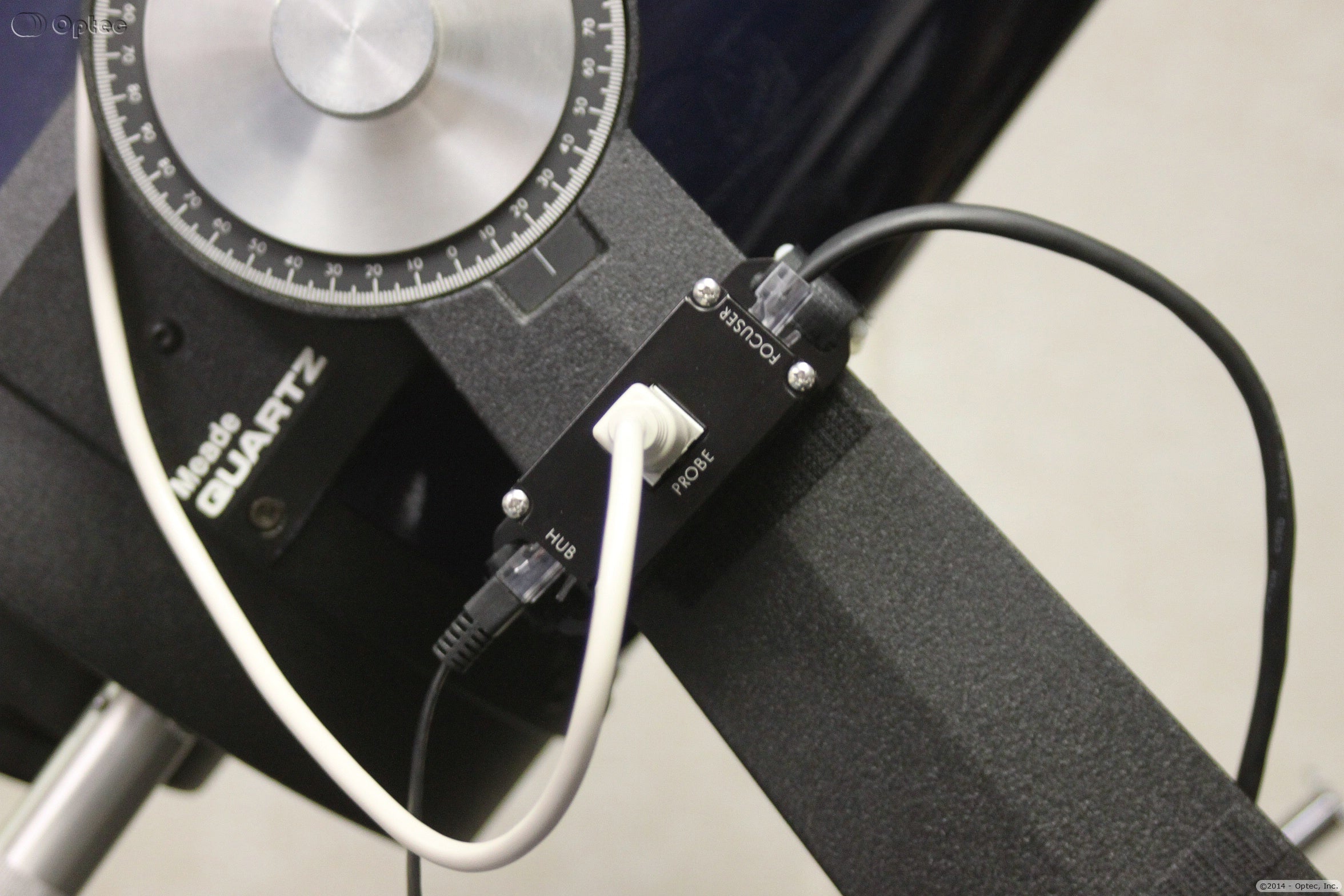

FocusLynx Temperature Probe KitThough the QuickSync motors include an on-board temperature probe for measuring ambient temperature changes, many purists prefer the measurement be made directly at the telescope OTA. To satisfy this requirement the #19539 External Temperature Probe Kit is available.

For users of the original Microtouch motors which do not include an on-board temperature, the #19539 External Temperature Probe Kit can provide the sensor for Temperature Compensation (TC) which would not otherwise be available.

Specifications

Compatibility:

• FocusLynx QuickSync motors,
• FocusLynx DirectSync motors,
• Feathertouch HSM motors,
• Feathertouch PDMS motors,
• Robo-Focus motors (requires #17671 cable),
• Starizona Microtouch motors (requires #17671 cable).

Specifications:

• Temperature Sensor:  Digital Temp Sensor type TMP04FT9Z
• Probe Cable Length:  24-inch (61mm) [lengths to 6-ft. upon request]
• Hub Connection: RJ45 8-pin socket
• Probe Connection:  6-pin DIN socket
• Focuser Connection: RJ12 6-pin socket
• Splitter Box Material:  6061 aluminum, anodized black
• Length:  3.1" (80.3m)
• Width:  1.125" (28.5mm)
• Thickness: 1.2" (31.3mm)
• Weight: 2.2 oz (65 g)
• Mounting:  Dual tabs with 1/4-20 clearance holes

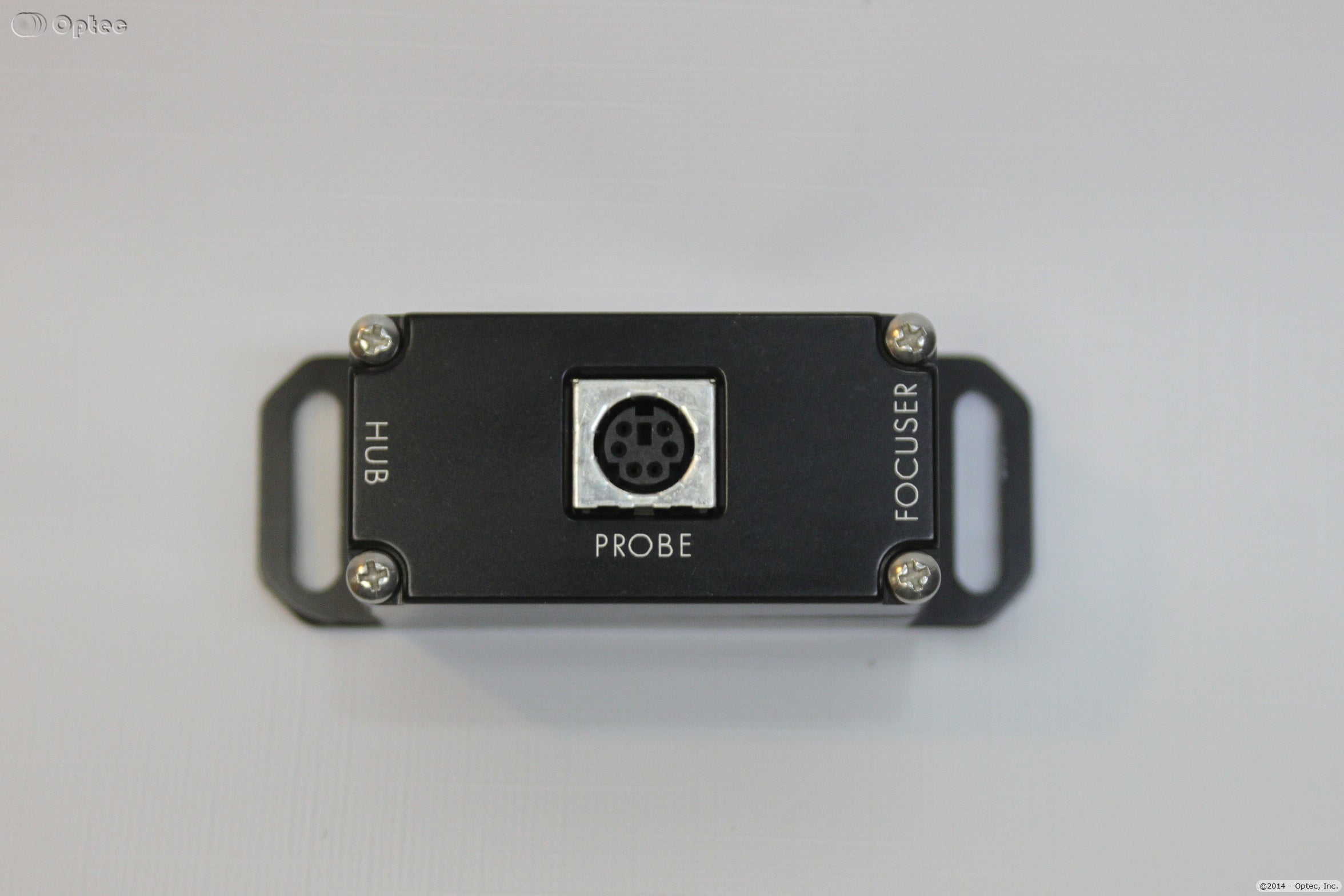

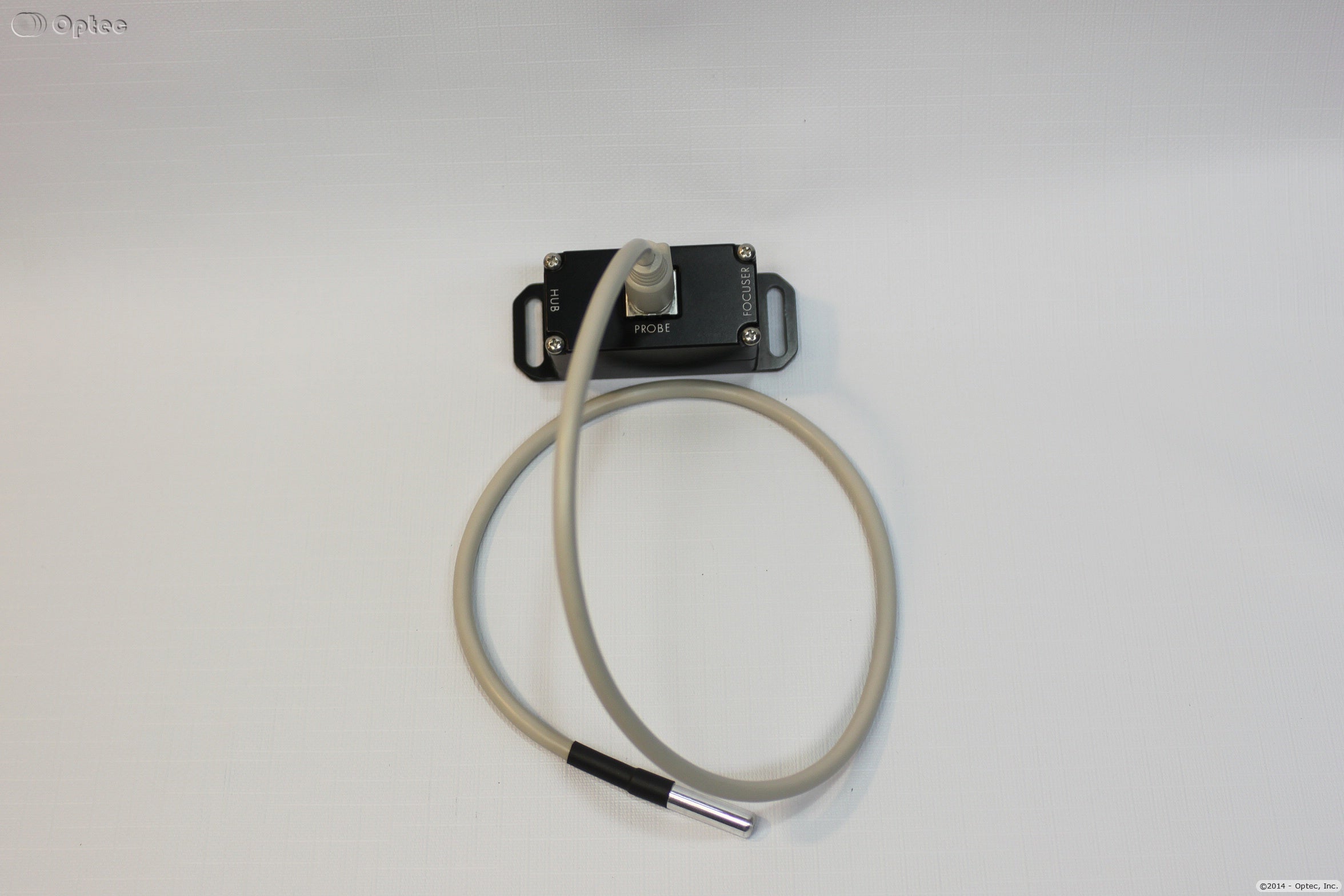

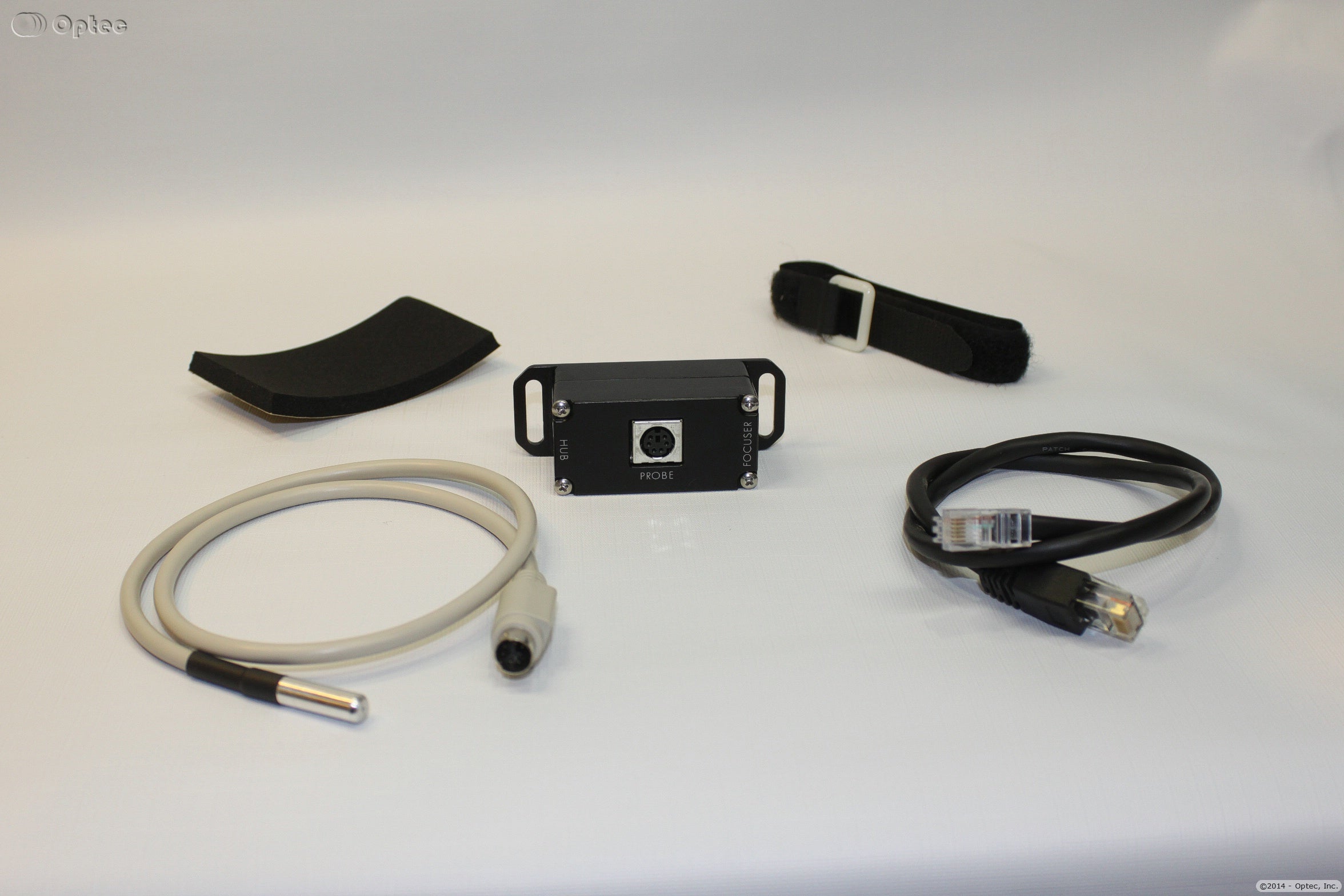

• #19539 External Temperature Probe package includes:  Precision Temperature Probe with 6-pin DIN connector, Splitter box with internal electronic noise filter, Thermal foam pad for probe mounting to OTA, and Velcro cinch-strap for tripod leg mount of Splitter Box.
