Camera Adapters

How do you attach your camera?

Over the years, Optec has developed dozens of adapters and custom fittings for various cameras and mounts. While most astronomical cameras have a female T-thread mount, many of the larger chip cameras are now being offered with even larger mechanical interfaces, such as the relatively new 3-inch 24tpi female mount available on Apogee, SBIG, and a modified version on the FLI cameras. However, there are a variety of other mounts such as the STL 4-bolt mount.

We classify our camera mounts by the size and shape of the "telescope" side mechanical interface for a typical configuration. These mounts correspond to many of our astronomy products. For example:

• OPTEC-2300 Camera Adapters for use with the Pyxis rotator, IFW Universal Mounting Ring, and Perseus 4-port parfocalizing rings.
• The OPTEC-2300 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any camera. If your scope or accessory is not listed, do not hesitate to call.
• OPTEC-2380 Mounting Rings are threaded mounts for use with the IFW and MAXfilter systems.
• The OPTEC-2380 circular dovetail mount is used for the IFW Intelligent Filter Wheel and Perseus 4-port selector parfocalizing rings to attach most cameras and accessories.
• OPTEC-3000 Dovetail Mounts for use with the 3-inch TCF-S3, Pyxis 3", and IFW-3.

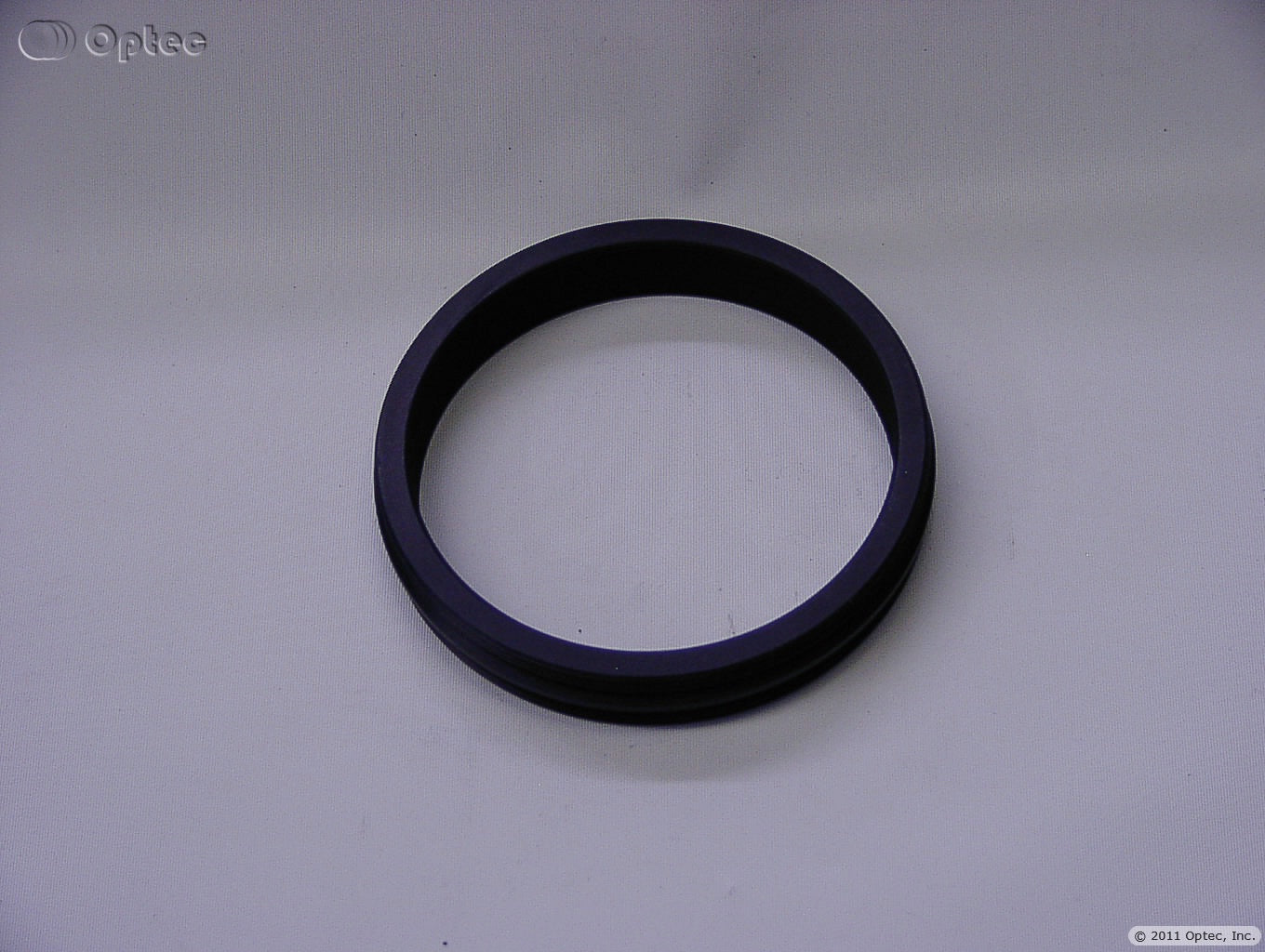

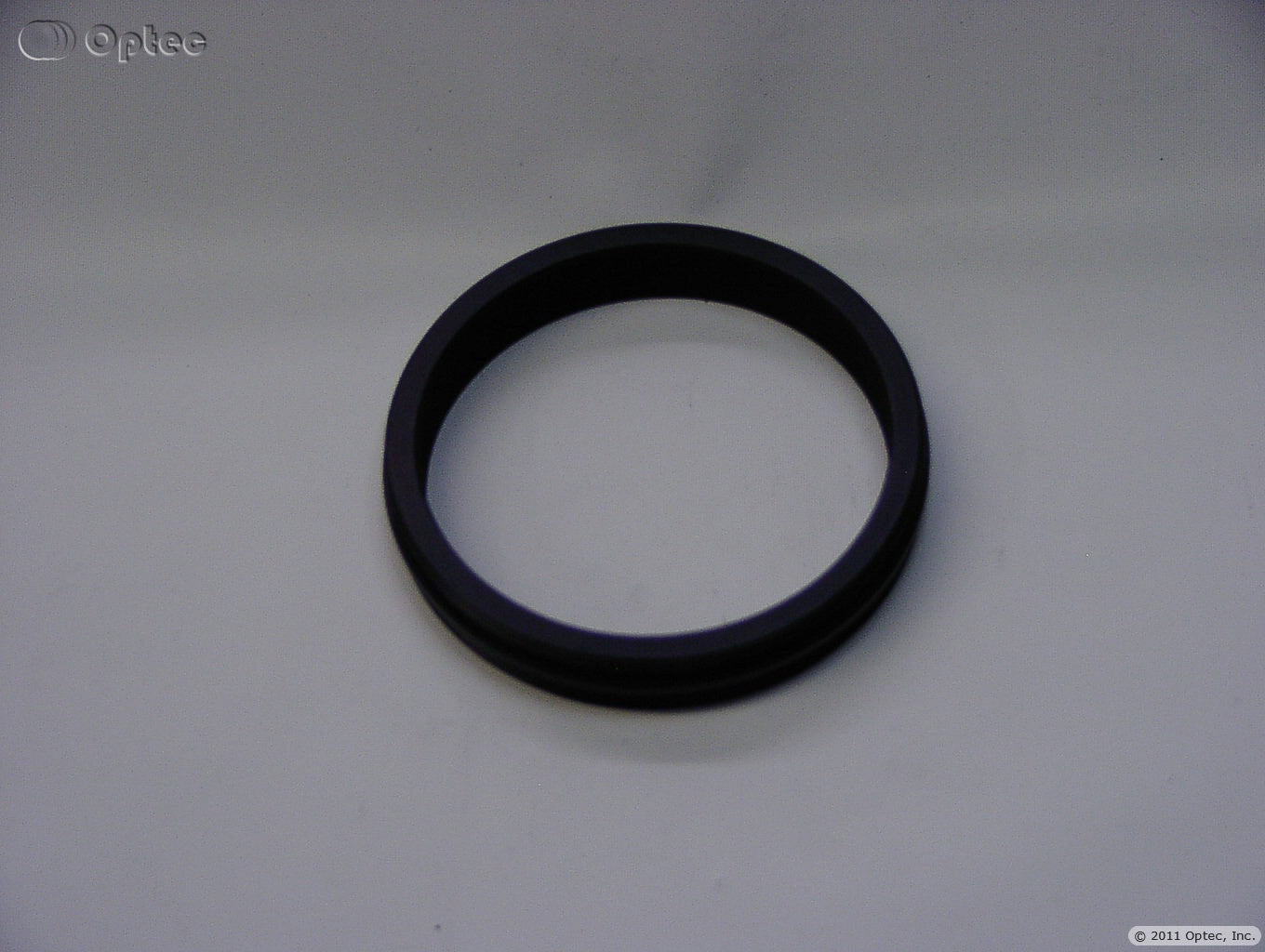

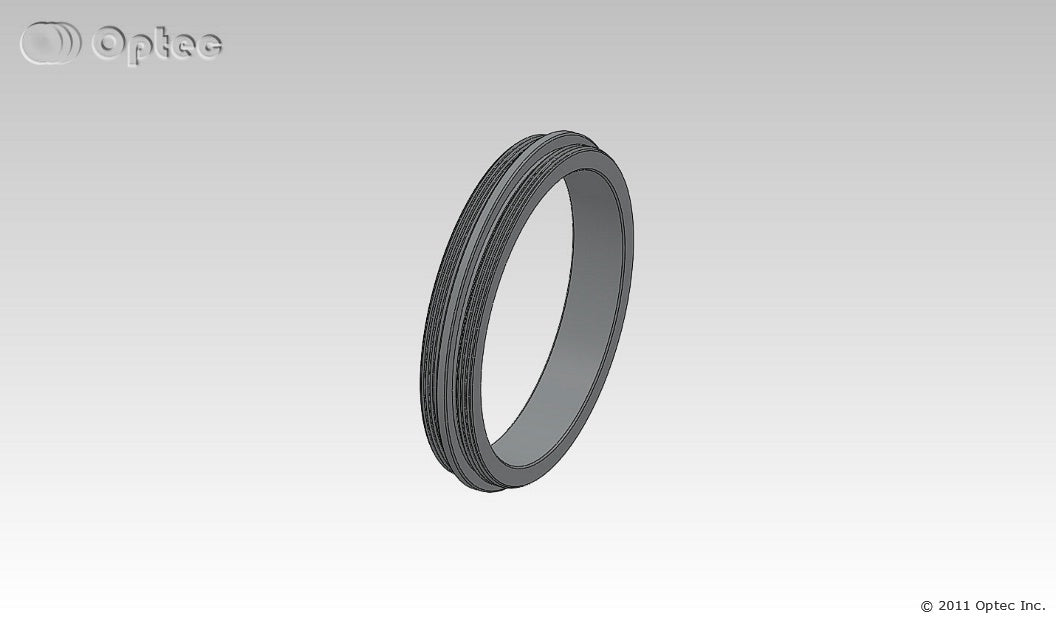

#19370 - 3"x24tpi Male Thread To 3"x24tpi Male Thread

The #19370 3-inch Male-to-Male adapter presents standard male 3-inch threads on both sides to allow easy attachment of equipment with 3-inch female thread connections.

Specifications

• Outside Diameter:  3.15" (80mm)
• Overall Height: 0.5" (12.7mm)
• Clear Aperture:  2.6"  (66.4mm)
• Weight: 1.28 oz (36.3 g)
• Back-focus Usage: 0.1" (2.54mm)
• Telescope Side Connection:  3"x24tpi Male Thread
• Camera Side Connection::  3"x24tpi Male Thread
