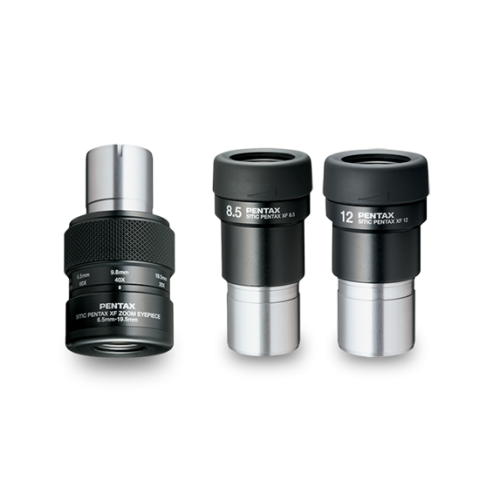

Developed for exclusive use with the compact PF-65ED and PF-645EDA spotting scopes, the smc PENTAX XF series offers a choice of three distinctive eyepieces: two unifocal models with a long eye relief and a wide angle of view, and one zoom model with a 20-60X variable magnification range. When the rotatable eyecup is removed, they feature an adapter-mounting screw (30.5mm in diameter with a 0.5mm pitch for the unifocal models, and 43mm in diameter with a 0.75mm pitch for the zoom model).
Product name | smc PENTAX XF12 | smc PENTAX XF8.5 | smc PENTAX XF ZOOM EYEPIECE |
Lens Structure | 6 elements in 4 groups | ||
Attachment Diameter | 31.7mm | ||
Length & External Diameter | 78 x 43mm | 83 x 43mm | 88 x 50mm |
Weight | 155g | 150g | 240g |
Screw Diameter for Adapter | M30.5 P=0.5 | M30.5 P=0.6 | M43 P=0.75 |
