FSQ 85EDX 1.01X Flattener - Field Flattener Lens for Telescope Photography | Perfect for Astrophotography & Deep Space Imaging

Description

When originally conceived, the FSQ-85EDX was meant for use with APS-C or smaller CCD or CMOS chips.  At image circle radii beyond about 14 mm, field curvature was evident in larger chips.  This new flattener will greatly reduce this field curvature, resulting in a practically flat field out to a 22 mm image circle radios. The two spot diagrams below demonstrate the impact of the flattener on field curvature.

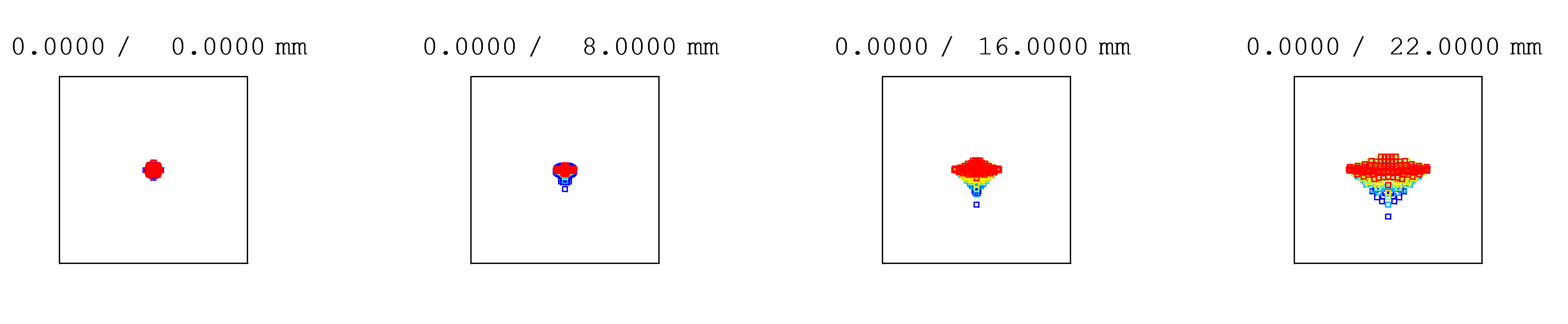

Spot Diagram of FSQ-85EDX Without Flattener

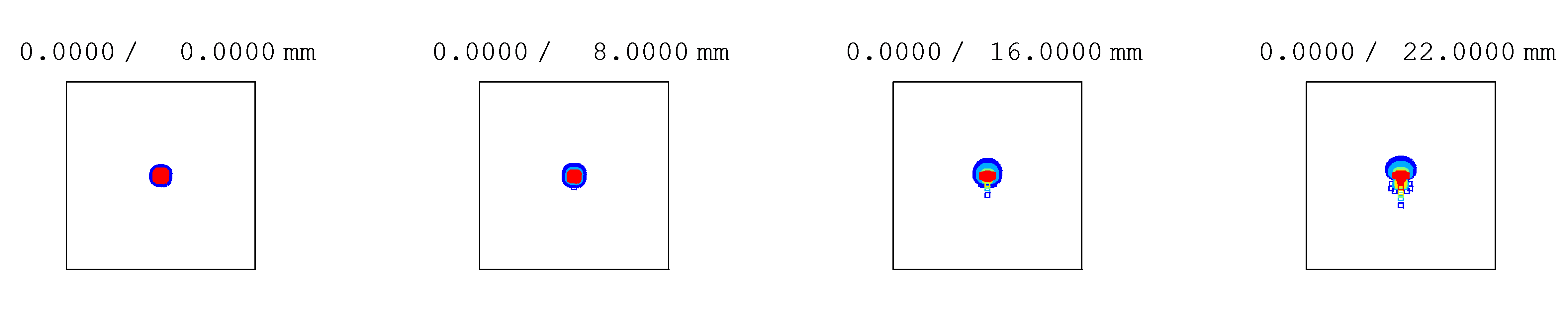

Spot Diagram of FSQ-85EDX with Flattener

Specifications

Provides FSQ-106EDX4 like field flatness on the FSQ-85EDX

Effective Focal Length: 455 mm (f/5.4)
Image Circle Diameter: 44 mm
Metal Back: 56 mm
Weight: 200 g
