Overview

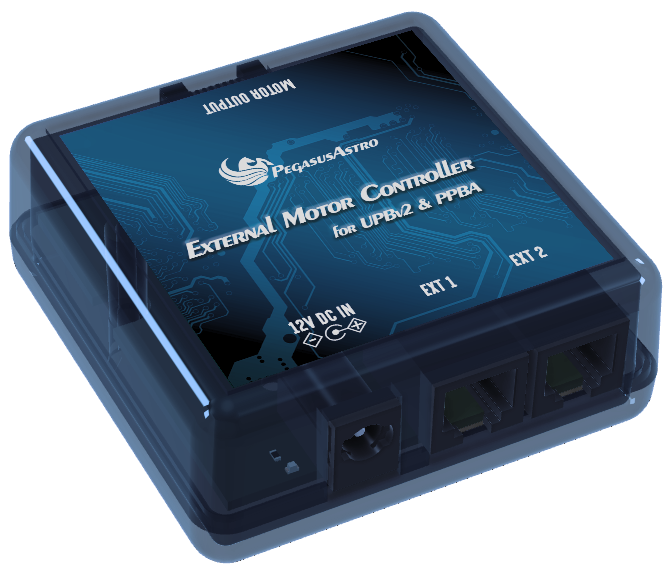

The external motor controller was designed to expand the focus capabilities of the Ultimate Powerbox v2 (supports a 2nd focus controller) and adds focus functionality to the Pocket Powerbox Advance. The device does not require a USB cable and can be attached directly to the EXT port of the Powerboxes. It can drive a large bipolar or unipolar stepper motor with high precision.

Description

Microstepping

Controller support micro-stepping which can be configured via software to Full / Half/ 1/4 step and 1/8 step. This provides additional precision and a smooth rotation from the stepper motor.

Supported Motors

We have successfully tested and controlled the following stepper motors:

• Pegasus Motor Focus
• Starlight HSM 25 / 30 / 35
• Starlight MSM 25 / 30 / 35
• Starizona Micro-Touch
• Starlight PDMS (Posi Drive Motor System)
• Rigel nStep Motors
• Moonlite Stepper Motor
• Robofocus Stepper Motor

Please note that each motor requires its own cable due to different pin-out selection of each manufacturer.

No USB port is required

You do not have to occupy a USB port as the controller does not require a USB connectivity. Just plug the RJ12 port into the EXT port and the controller will be recognized from the powerbox software. Simple as that!

Second EXT port available

A second EXT port allows you to daisy chain future equipment or connect your environmental sensor.

Protections

The controller is fully protected against undervoltage, overcurrent, and overtemperature events.
