Camera Adapters

How do you attach your camera?

Over the years, Optec has developed dozens of adapters and custom fittings for various cameras and mounts. While most astronomical cameras have a female T-thread mount, many of the larger chip cameras are now being offered with even larger mechanical interfaces, such as the relatively new 3-inch 24tpi female mount available on Apogee, SBIG, and a modified version on the FLI cameras. However, there are a variety of other mounts such as the STL 4-bolt mount.

We classify our camera mounts by the size and shape of the "telescope" side mechanical interface for a typical configuration. These mounts correspond to many of our astronomy products. For example:

• OPTEC-2300 Camera Adapters for use with the Pyxis rotator, IFW Universal Mounting Ring, and Perseus 4-port parfocalizing rings.
• The OPTEC-2300 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any camera. If your scope or accessory is not listed, do not hesitate to call.
• OPTEC-2380 Mounting Rings are threaded mounts for use with the IFW and MAXfilter systems.
• The OPTEC-2380 circular dovetail mount is used for the IFW Intelligent Filter Wheel and Perseus 4-port selector parfocalizing rings to attach most cameras and accessories.
• OPTEC-3000 Dovetail Mounts for use with the 3-inch TCF-S3, Pyxis 3", and IFW-3.

OPTEC-3000 3-inch Mounts

3-inch Adapters for the TCF-S3", Pyxis 3" and IFW 3"

Optec 3-inch "Push-Fit" Mount

The OPTEC-3000 3-inch mounts "push-fit" into any 3-inch receiver including the TCF-S3, IFW-3 #17367 Rear Cover Plate, and Pyxis 3" rotator. Similar to a 2-inch eyepiece barrel or 2-inch camera nosepiece, the OPTEC-3000 series appears as a 3-inch nosepiece for convenient, yet secure mounting. All the OPTEC-3000 mounts have a machined dovetail to match the thumbscrews, setscrews, and other mounting hardware for all our 3-inch product line.

If your camera or accessory is not listed, do not hesitate to call. We are constantly adding new adapters to our catalog.

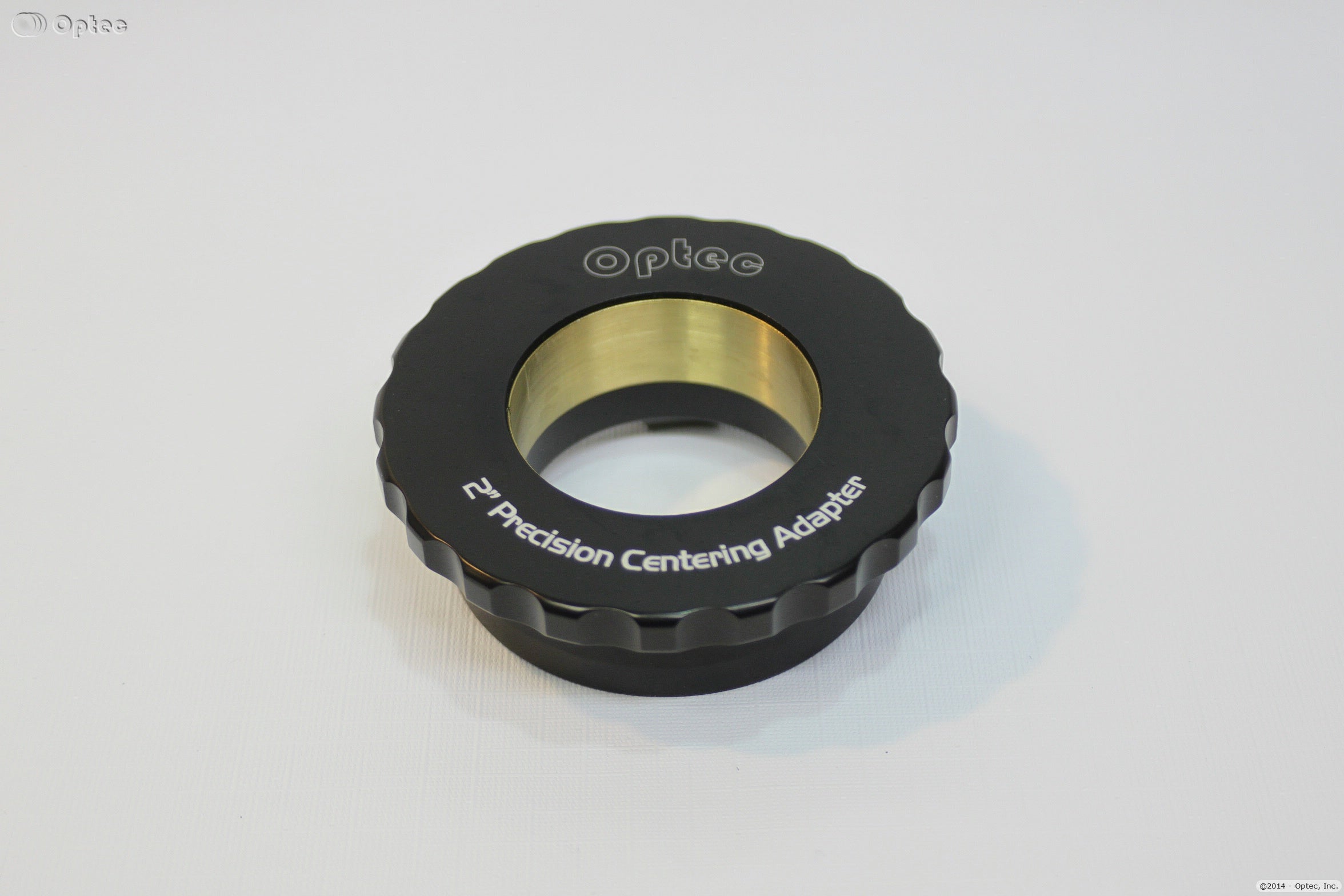

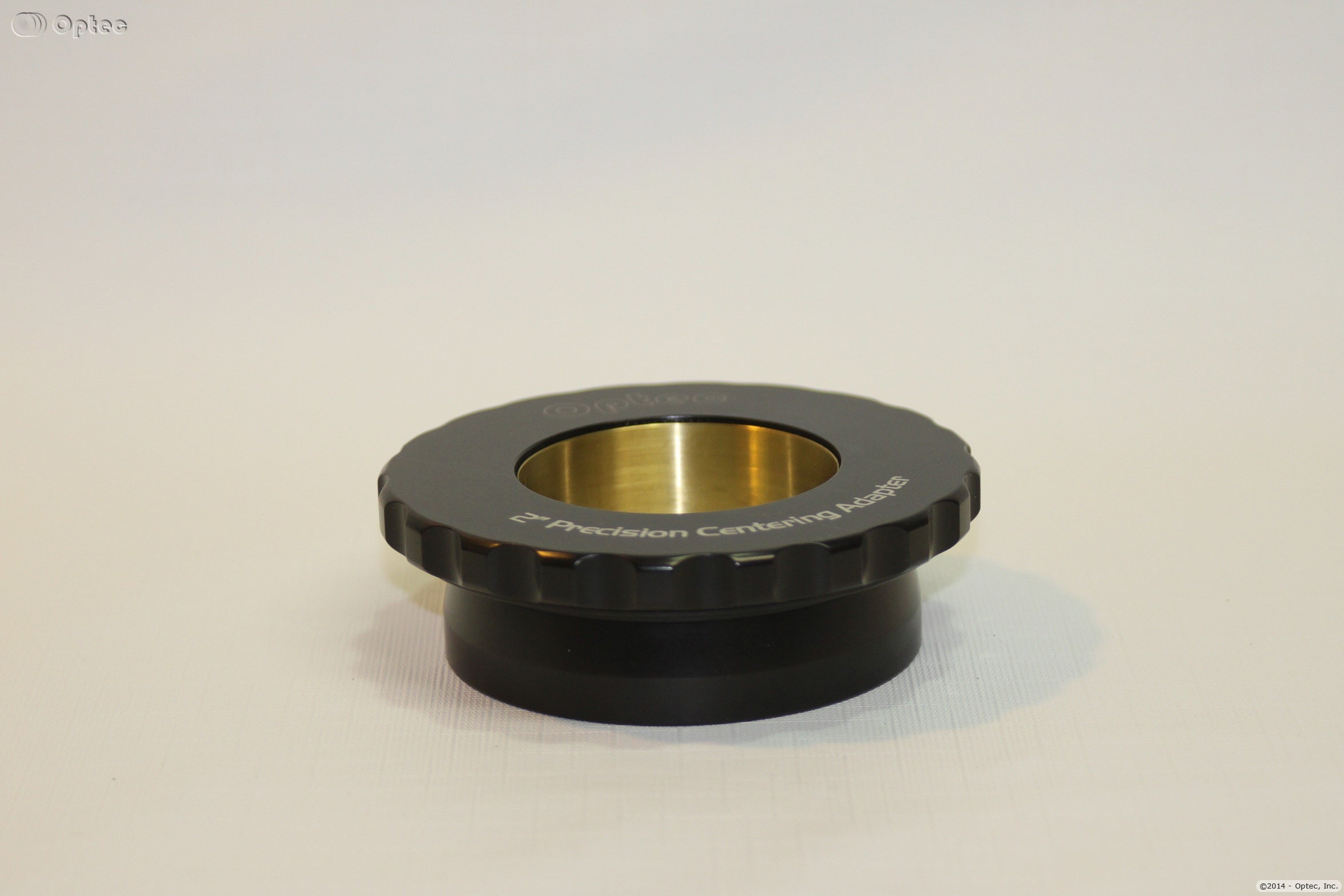

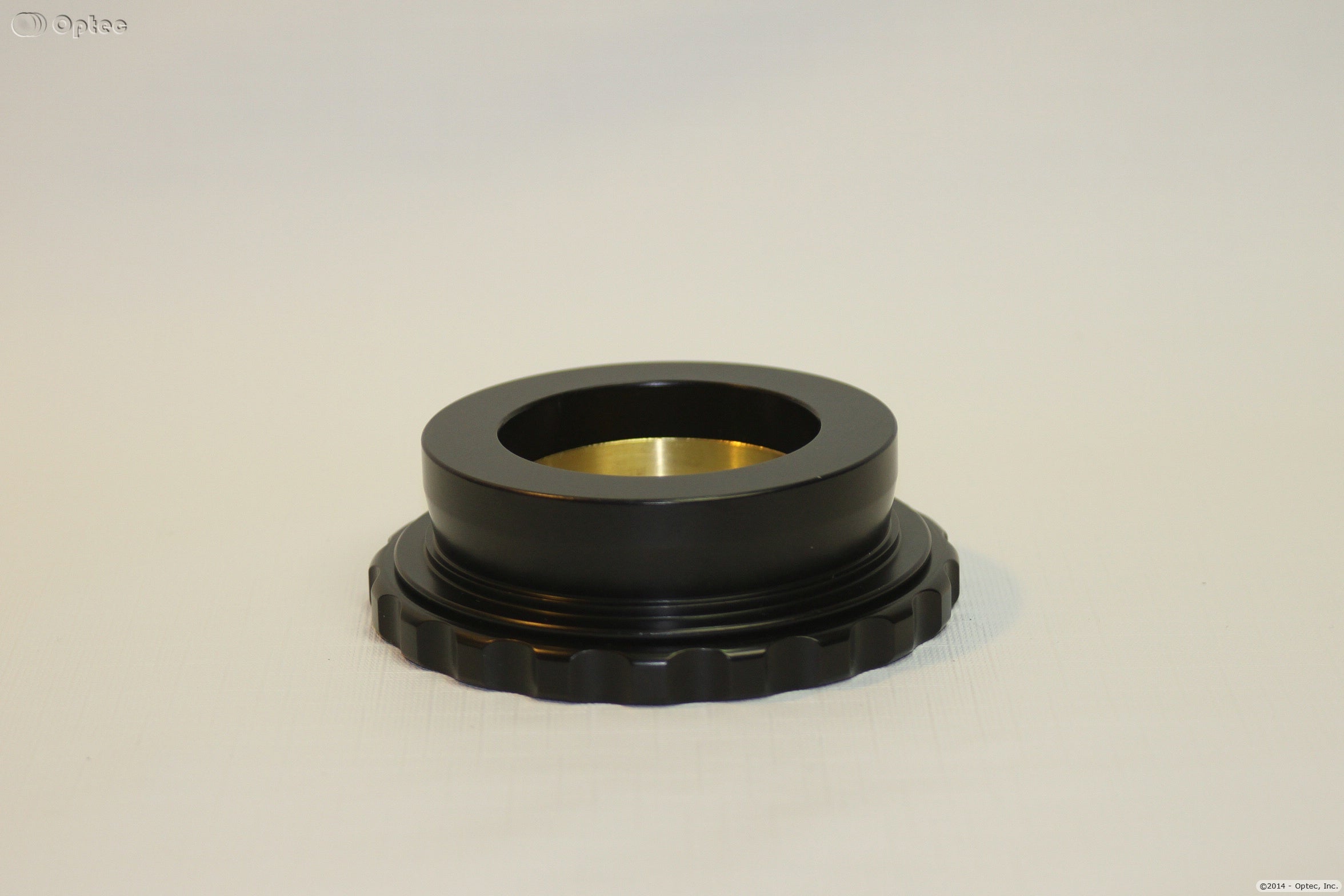

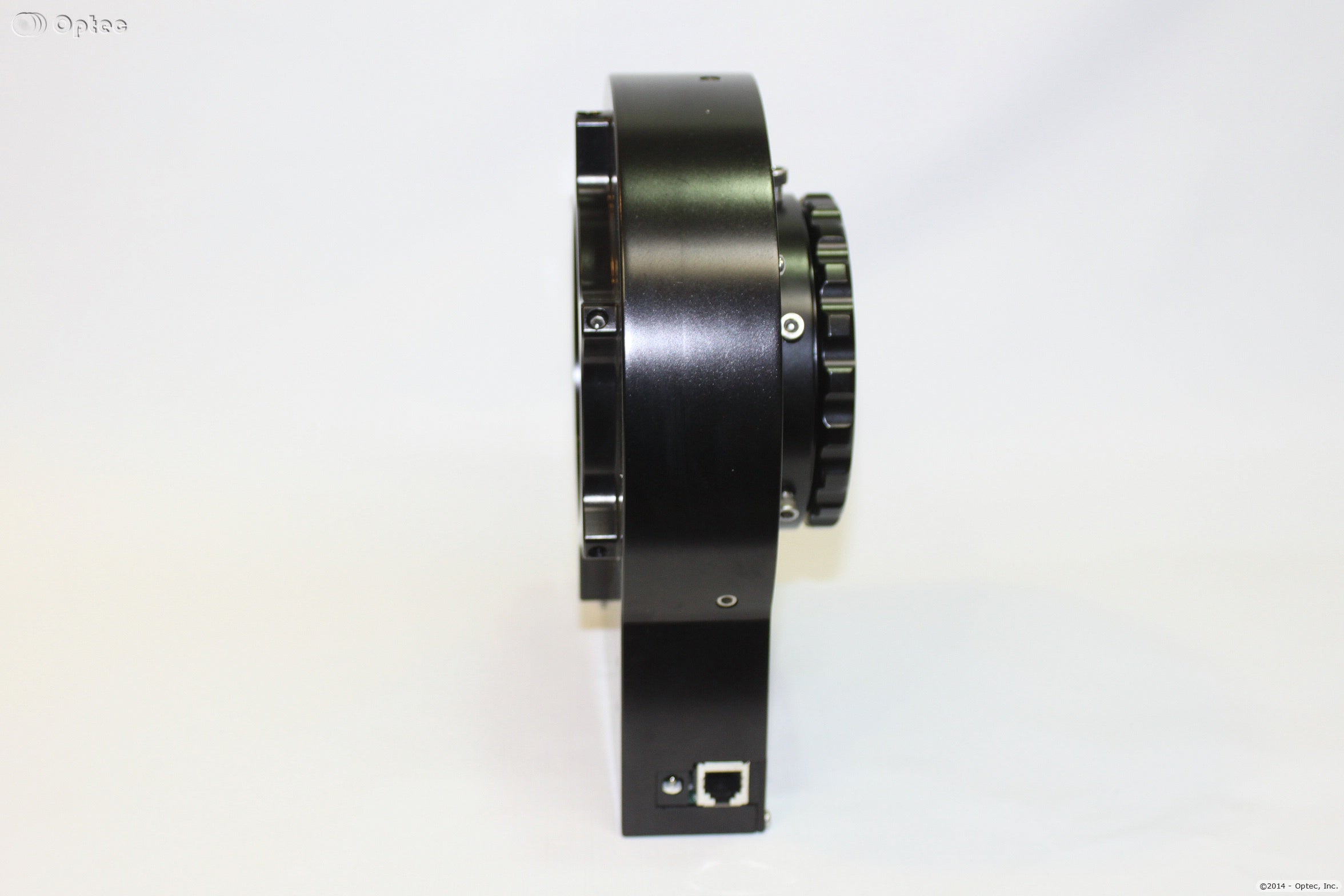

#19825 - 3" Drawtube Adapter To 2" - Precision Centering Collet design.

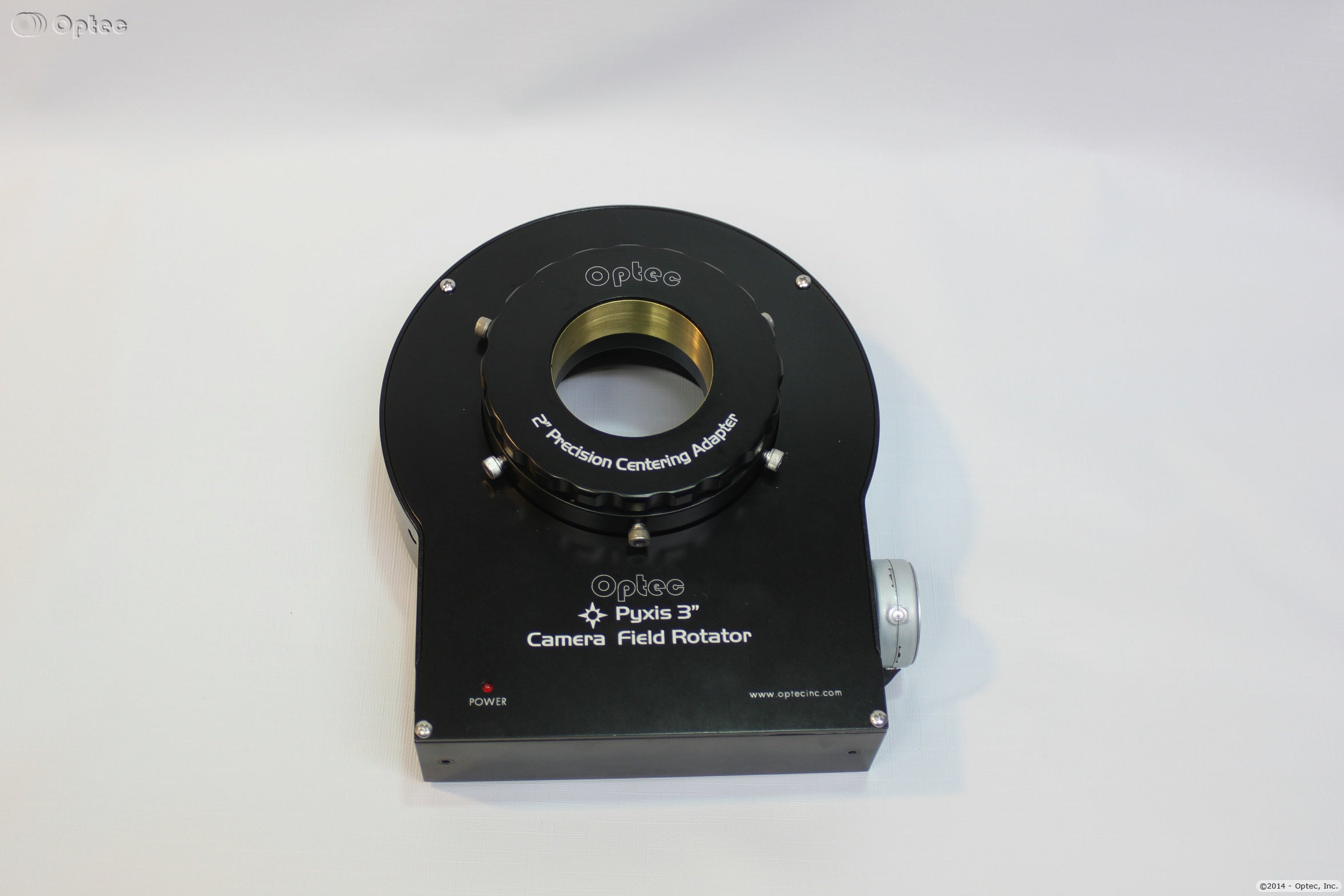

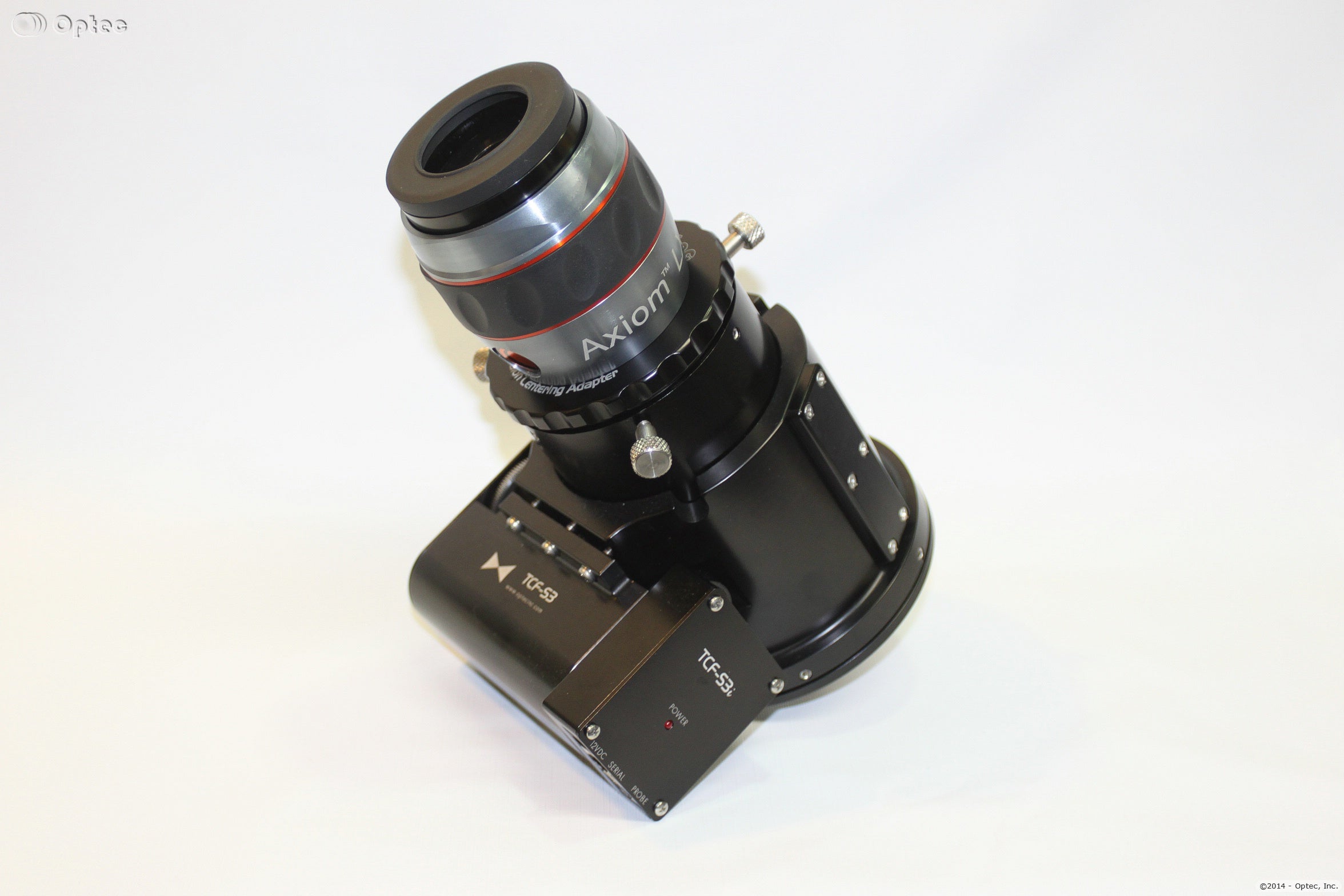

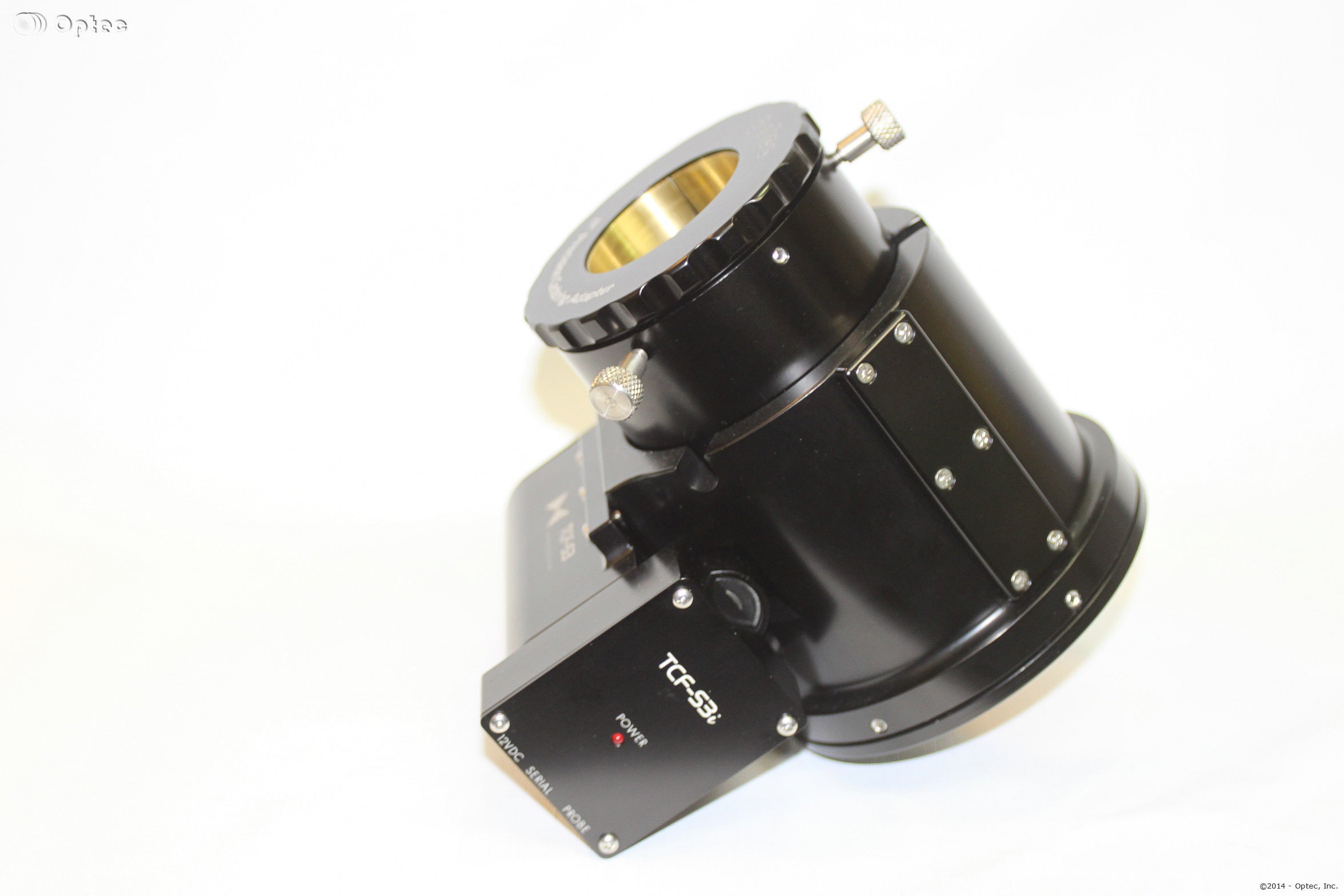

The #19825 Precision Centering Collect adapter allows equipment with a 2-inch drawtube adapter to be attached behind 3-inch OPTEC-3000 equipment including the TCF-S3, IFW-3, and Pyxis 3" rotator.

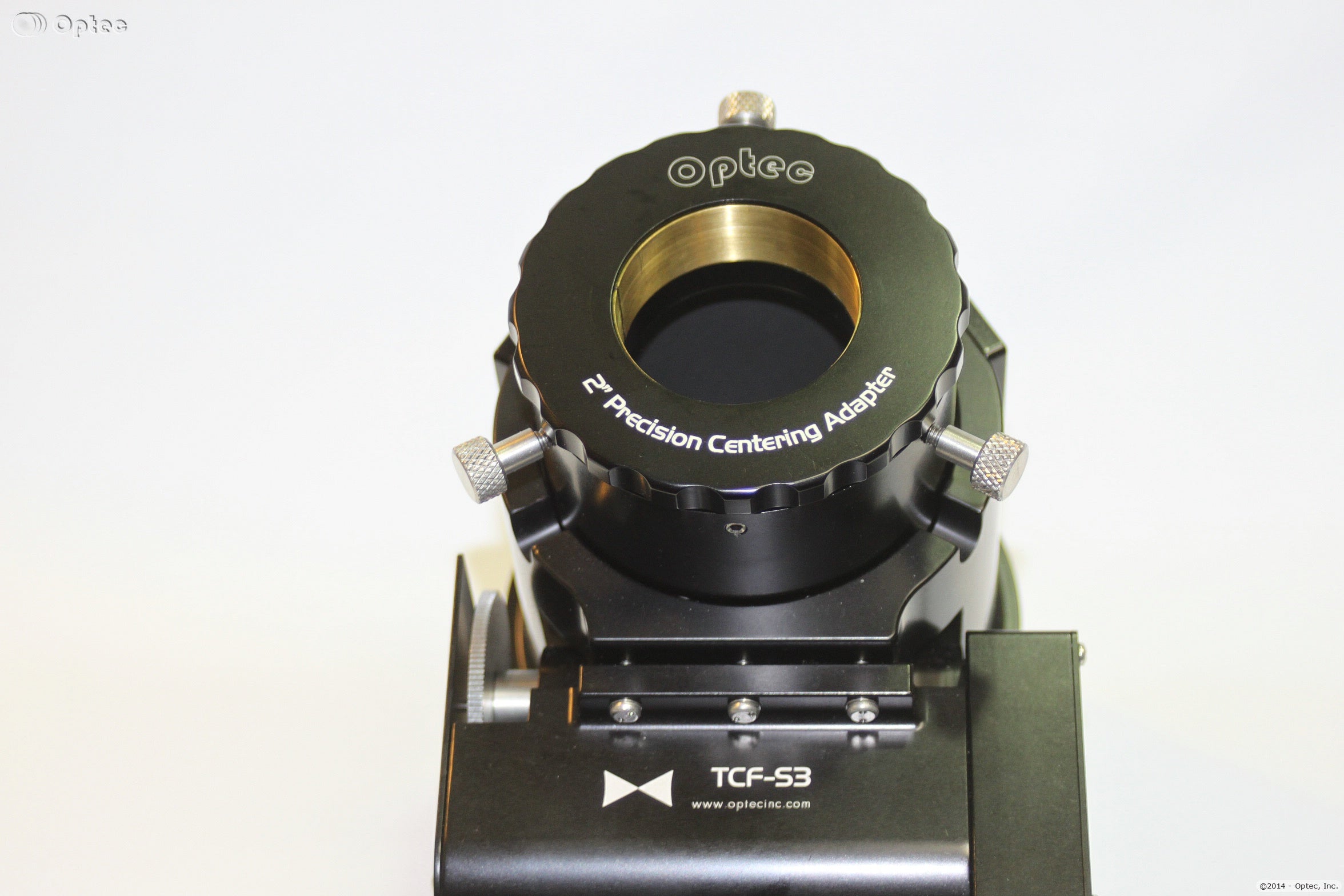

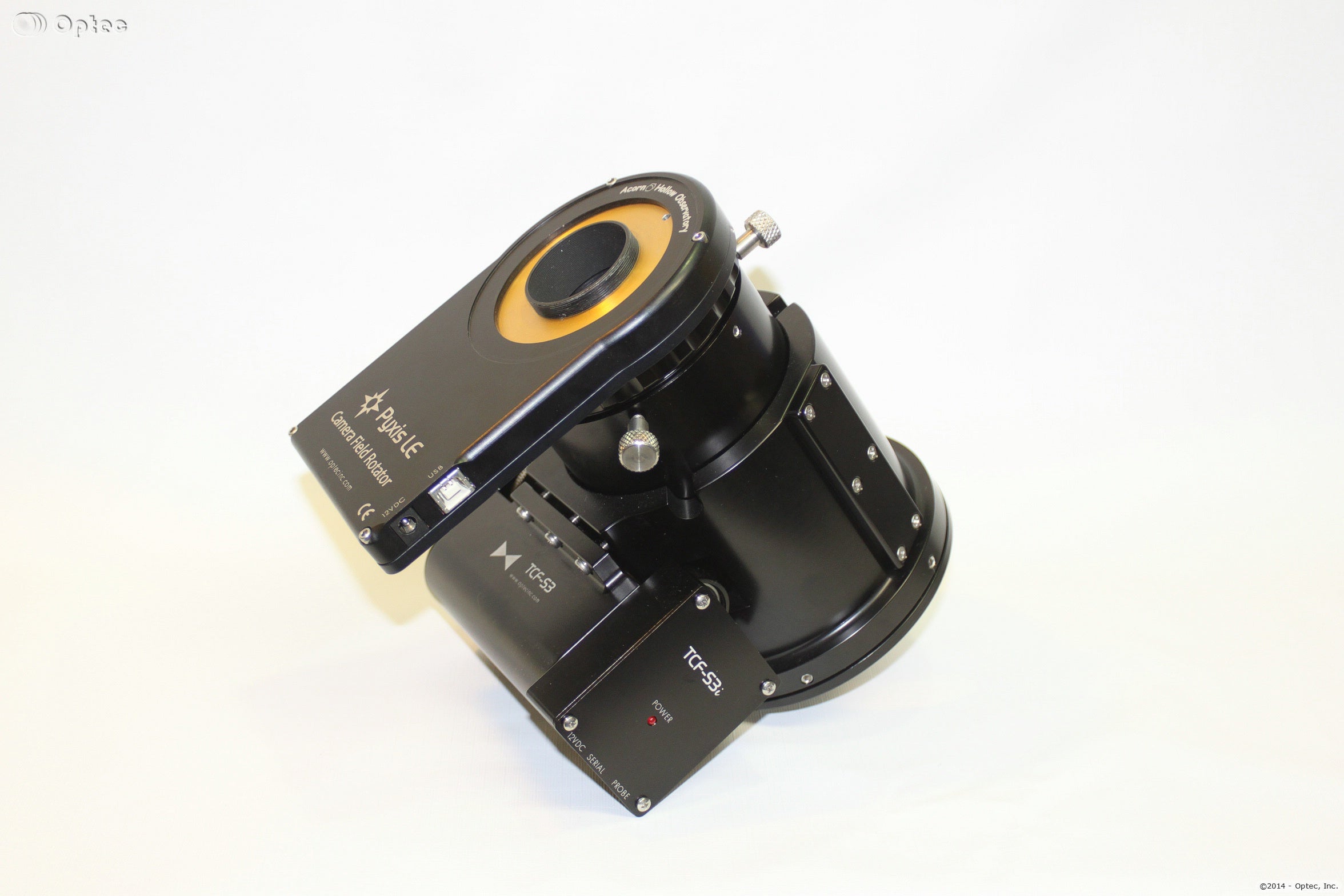

This adapter includes a brass machined centering collet includes a specially designed brass compression ring which self-centers when tightened.  To use simply twist the locking collar counter clockwise to allow insertion of your 2-inch eyepiece or camera nosepiece, then twist clockwise to tighten and center.  Especially designed for use with the TCF-S3 series focusers and Pyxis 3" rotators.

Specifications

• Outside Diameter:  3.75" (95mm)
• Overall Height: 1.18" (30mm)
• Clear Aperture:  2.01"  (51mm)
• Weight: 6.08 oz. (172 g)
• Compression Ring:  machined 360 brass
• Back-focus Usage: 0.45" (11.5 mm)
• Telescope Side Connection:  OPTEC-3000 Dovetail
• Camera Side Connection:  2" Receiver

• 2-inch Eyepieces,
• 2-inch Camera Nosepieces,
• Pyxis 2" camera field rotator,
• NextGen and Lepus series telecompressors,
• Any 2-inch 'push-fit' accessory.
