Optolong IR Pass 685nm Filter 1.25" Mounted for Astrophotography - IRPS685 125 - Perfect for Night Sky Photography & Telescope Imaging
Free shipping on all orders over $50
7-15 days international
10 people viewing this product right now!
30-day free returns
Secure checkout
30327392
Description

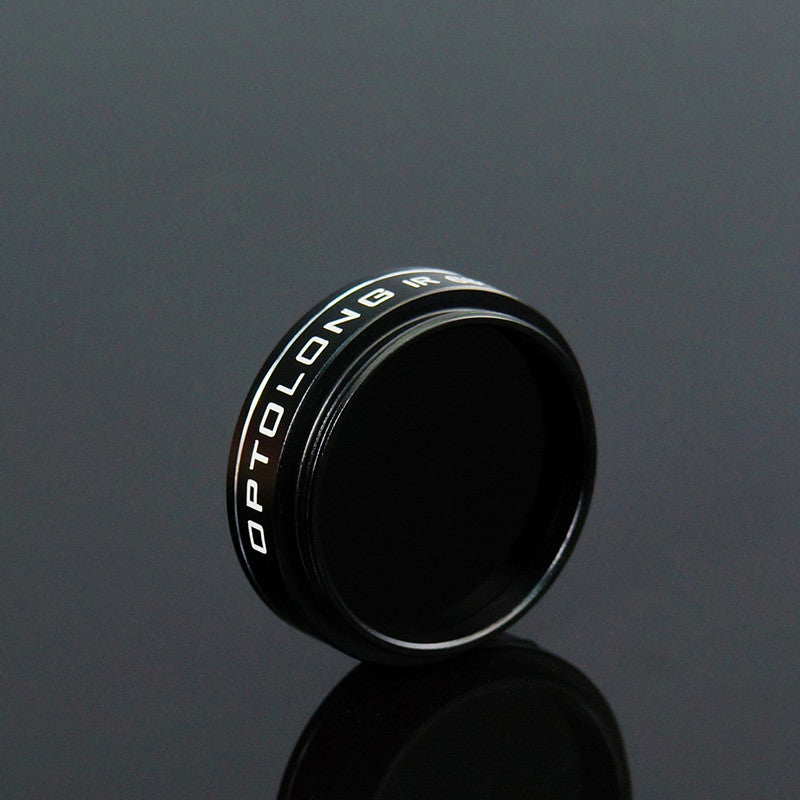

Optolong IR Pass 685nm Filter - 1.25”

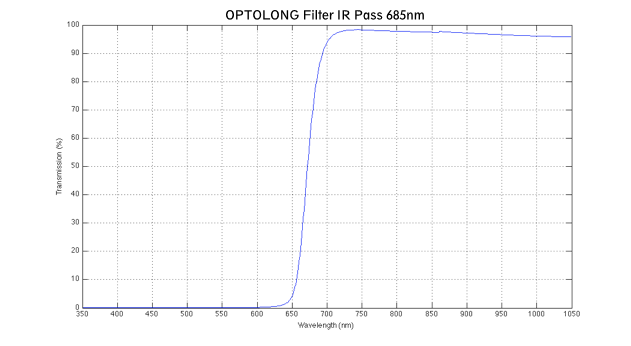

This IR Pass 685nm Filter is designed by Optolong and is housed in a 1.25" cell. This filter blocks wavelengths below 670nm to intensify surface detail and contrast. When used in IR-LRGB imaging of the moon and planets, it minimizes the effects of atmospheric seeing. Seeing and distortion diminish as you move further away from visible light into the infrared, and since CCD and CMOS sensors are sensitive to IR light, imaging in the infrared will improve your results.
The IR Pass 685nm filter allows a 95% transmission at bandpass.
The Optolong 2” IR Pass 685nm Filter is made with Schott glass that has been multi-coated with an ion-assisted deposition technology to ensure scratch resistance and stability on the central wavelength, or CWL. The filter cell is made of lightweight, strong metal and is CNC machined, sand-blasted, black anodized, and then laser engraved. The result is a super thin filter cell that will produce a clear aperture of 26mm.
Quality Filter Materials:
- Schott B260 substrate material from Germany, 2.0mm thick
- CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading
- Multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition
Optolong Filter Manufacturing Processes and Parameters
- Filter substrate is fine-optically polished to 1/4 wave and <30 parallelism over both surfaces
- Surface quality, according to MIL-O-13830, is 60/40
- 95% transmission at passband
- High-value transmission of pass-band and optical density of off-band is assured through Optolong’s planetary rotation system, a homogeneous and precise coating procedure
- Thin metal cells have a clear aperture of 26mm for 1.25” filters
- Each filter comes with a plastic case with high-pressure EVA case lining
About Optolong
Optolong is the Astronomy Filters division of Yulong Optics, an optical filter design, and processing company out of Kunming, China that has provided filters for over 700 optical companies since 1999. All Optolong filters pass European Union RoHS requirements and have been certified by TUV Rheinland and Bureau Veritas.
